Version: ACE 5

Export APIs

ACE allows exporting APIs in OpenAPI 3.0 format (also known as Swagger).

During export ACE generates OpenAPI 3.0 specification based on the selected APIs and schemas.

The exported specification contains all the necessary information to call the APIs, including the request and response schemas.

The export screen will offer to select all APIs located in the currently selected folder.

To export APIs, follow these steps:

  • Click on the Export OpenAPI schema button in the toolbar of the API Builder
  • Select the APIs you want to export
  • Click on the Export button
    • Optimize OpenAPI option automatically fixes some of the most common issues in the exported OpenAPI schema like empty required option in schemas

See visual guide below:

  • Export OpenAPI schema button Export OpenAPI

  • Export OpenAPI dialog Export OpenAPI dialog

OpenAPI templates​

It is possible to specify an OpenAPI template to use during API export. A template is a partial OpenAPI 3.0 document that provides predefined structure or metadata for the final exported schema.

Templates can include common fields such as:

  • API info (title, description, version)

  • Global servers

  • Custom tags or external documentation

During export, the selected APIs and schemas are merged into the chosen template. This allows for consistent formatting, documentation standards, and reusability across multiple API exports.

To use a template during export:

  • Select a template from the OpenAPI template dropdown in the export dialog (see example below)

  • The selected template will be used as the base of the generated OpenAPI document

  • All selected APIs and schemas will be inserted into the appropriate sections (e.g., paths, components)

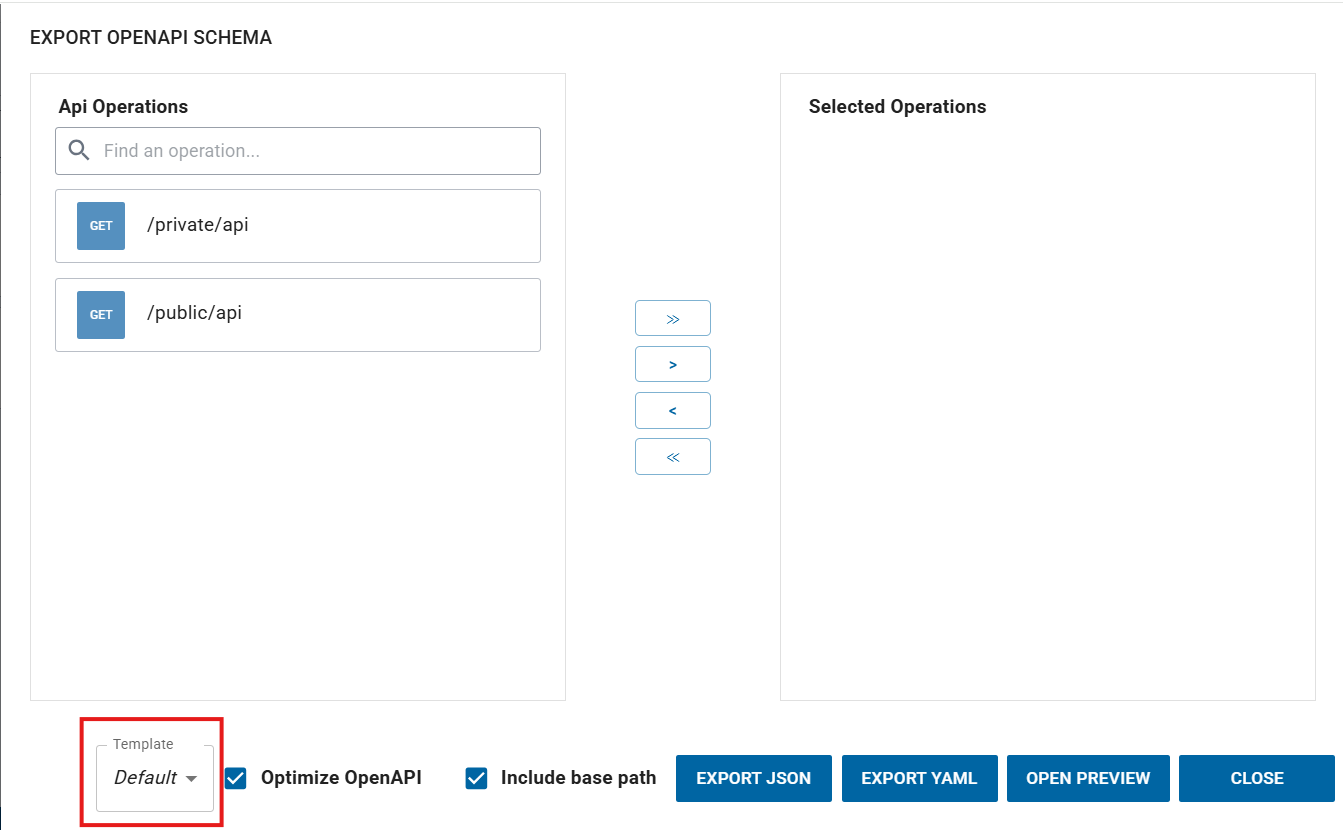

OpenAPI template

Templates are optional. If no template is selected, ACE generates a complete OpenAPI document from scratch.

Creating templates​

OpenAPI templates must be created and maintained by the user. These are standard YAML files that follow the OpenAPI 3.0 specification format. Templates should contain the desired static content—such as metadata, server URLs etc. that will be reused across multiple exports.

To use a custom template in the export process, simply create the file with the required structure and save it in openapi-templates folder in your ACE workspace. If such folder does not exist then add it to the root folder of your workspace same as flows or apis. Once available, templates will appear in the OpenAPI template dropdown for selection during export.

example template
openapi: "3.0.0"
info:
  title: "Dynamic apis template"
  description: "List of dynamic apis"
  version: "1.0.0"
tags:
  - name: pets
    description: Everything about your Pets
    externalDocs:
      url: http://docs.my-api.com/pet-operations.htm
  - name: store
    description: Access to Petstore orders
    externalDocs:
      url: http://docs.my-api.com/store-orders.htm

Deployed APIs and templates​

Templates can be used when user wants to retrieve OpenAPI schema of deployed APIs. To achieve this user needs to:

  • deploy template (done during workspace deployment)
  • specify Runtime server environment variable ACE_OPENAPI_TEMPLATE_FILE_NAME where value is the name and extension of template file (example: ACE_OPENAPI_TEMPLATE_FILE_NAME=openapi-template.yaml)

When these steps are executed retrieved OpenAPI schema will use template as its base. If this variable is not specified default builtin template will be used.
